Wing corkscrew

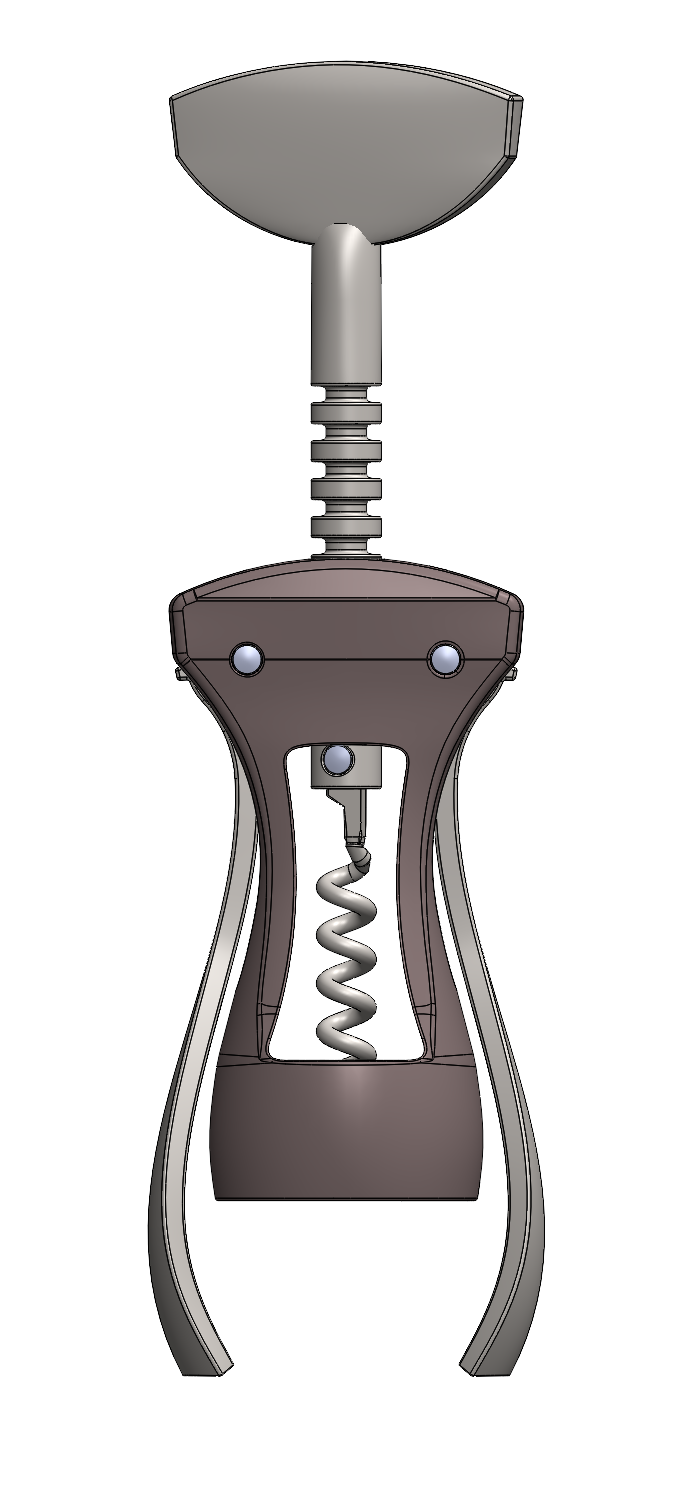

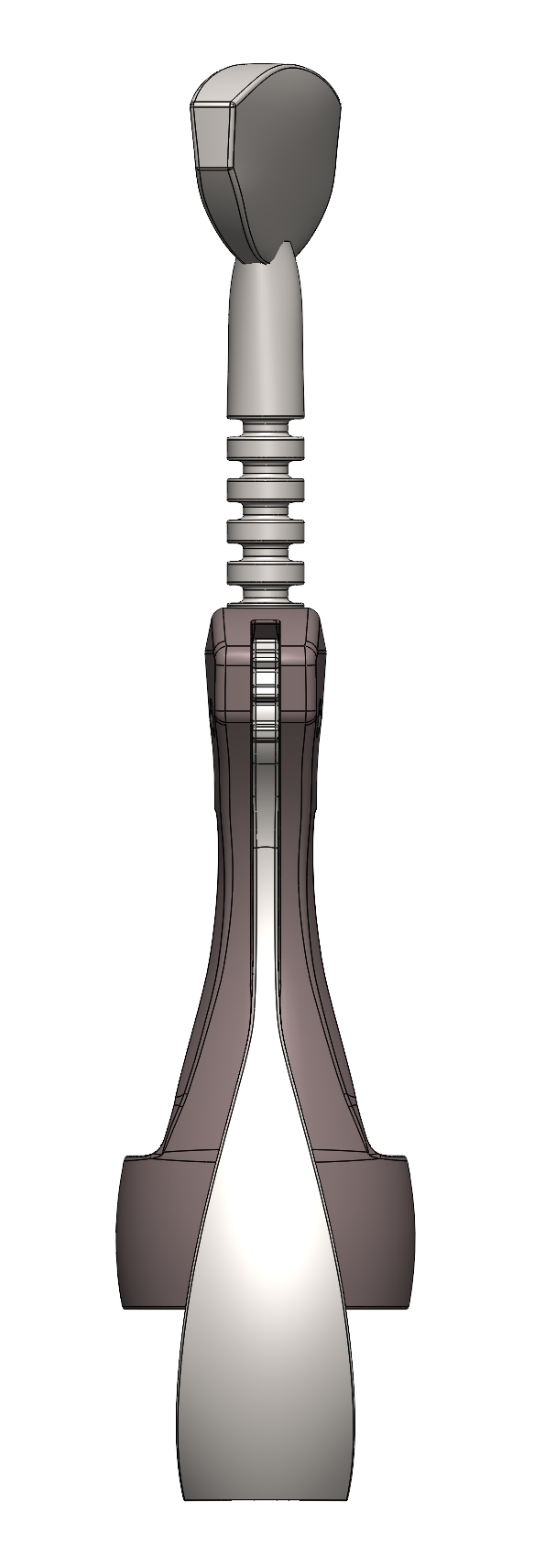

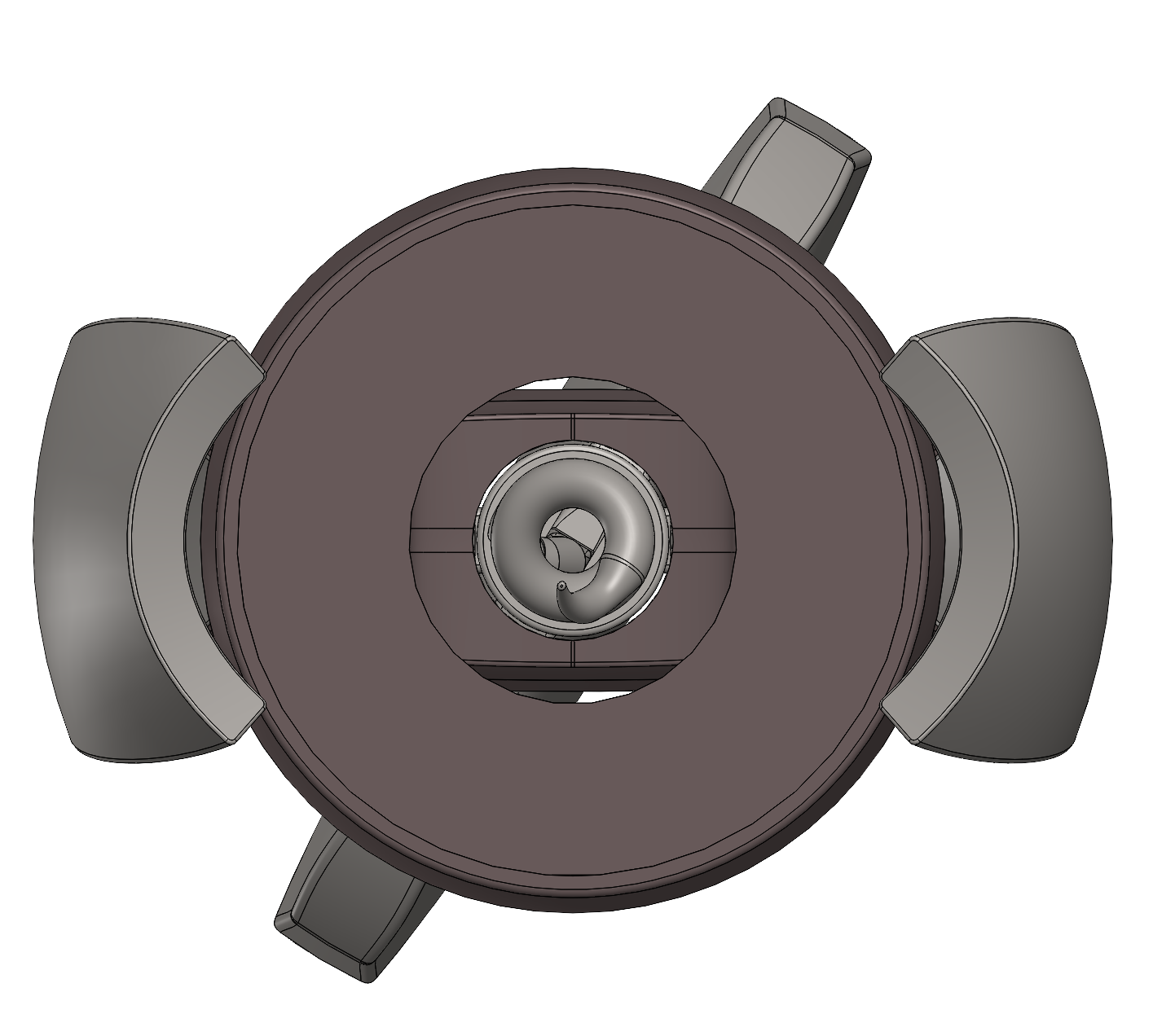

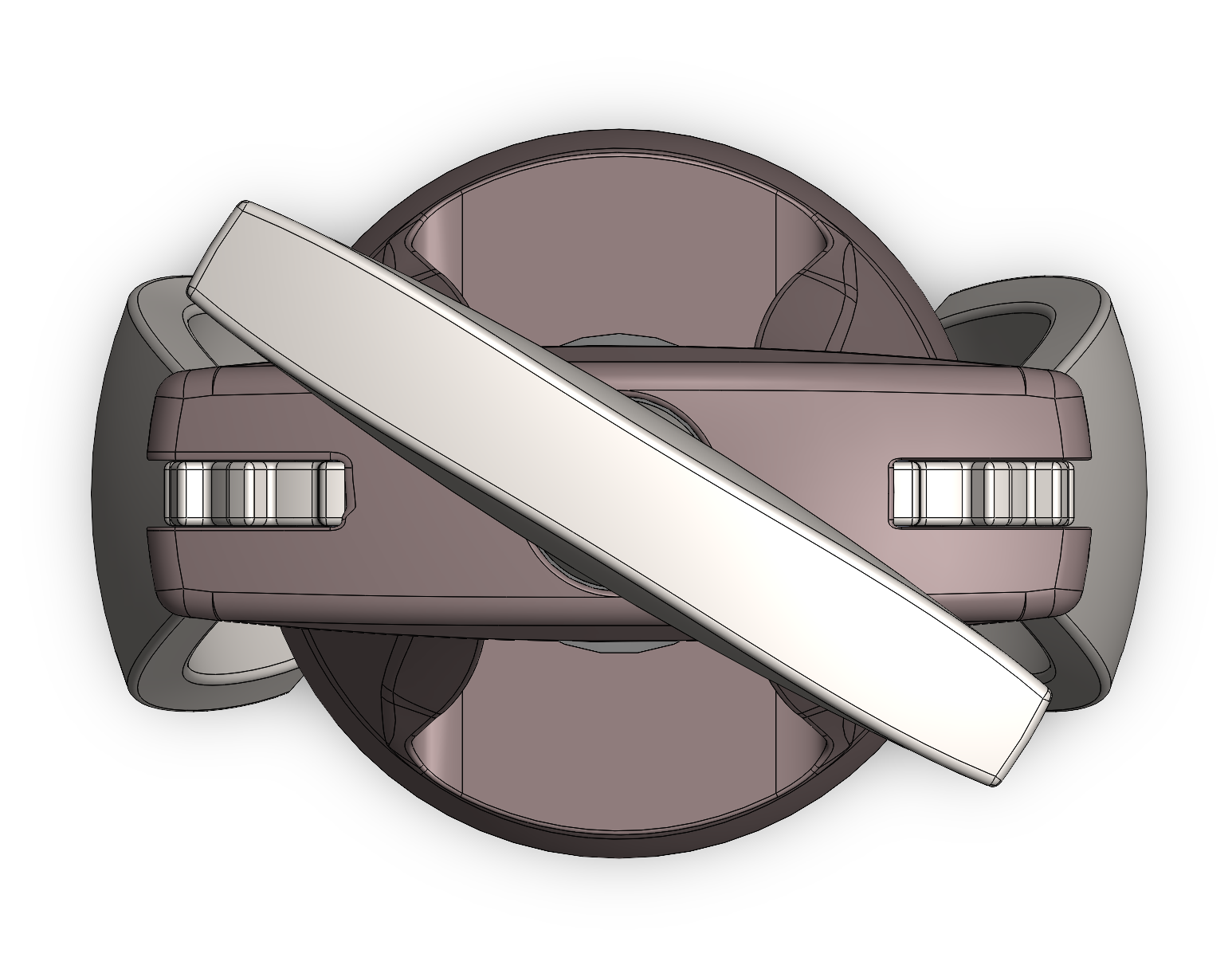

While packing to relocate for the second time in just three weeks since landing in California, I found this Wing Corkscrew amongst my uncle’s belongings to have very controlled surfaces and my favorite simple mechanism, the rack and pinion. So I recreated it on Solidworks!

I used a series of Solid and Surface Loft Sketch Profiles along with Guide Curves from relentlessly measuring the object. As well as different kinds of Mates in its Assembly.
